FOXBORO FBM211 P0914TN Differtiantial 16 Input Module

Foxboro FBM211 P0914TN 0 to 20 mA Input Interface Module contains sixteen 20 mA dc analog input channels.

brand:
Foxboro
item no:
FBM211 P0914TN
payment:
T/T, Western Union, Credit Card
product origin:
USA
shipping port:
Dammam
lead time:
1-3 Days
condition:
Brand New And Original
warranty:
1 Year
certificate:
COO
product type:
I/O Module
system:
I/A Series

Product Details
FAQs

Foxboro FBM211 P0914TNDifferential 16 Input I/A Series PLC Invensys

Foxboro FBM211 P0914TN Description

The FBM211P0914TN, 0 to 20 mA Input Interface Modulecontains sixteen 20 mA dc analog input channels,each channel accepting a 2-wire analog sensor inputsuch as a 4 to 20 mA transmitter or a self-powered20 mA source. The input channels are galvanicallyisolated from ground and module logic. The moduleperforms the signal conversion required to interfacethe electrical input signals from the field sensors tothe redundant module Fieldbus.FBM211P0914TN executes an analog input applicationprogram, which provides configurable options forConversion Time and Rate of Change Limits.

FBM211 P0914TN Functional Specifications

Product No	FBM211 P0914TN
Input	16 group isolated and independent channels
Input Range	0 to 20.4 mA dc
Accuracy	±0.03% of span
Normal Mode Rejection	>35 db at 50 or 60 Hz
Input Channel Impedance	61.9 Ω nominal
Input voltage range	24 V dc +5%, -10%
Power consumption	7 W (maximum) at 24 V dc, 11 W (maximum) at 24 V dc with all inputs at 20.4 mA (internal power)

Foxboro Datasheet

FBM204, 0 to 20 mA I/O Interface Module

FBM207/b/c Voltage Monitor/Contact Sense Input Interface Modules

FBM211, 0 to 20 mA Input Interface Module

FBM214 HART Communication Input Interface Module

FBM215 HART Communication Output Interface Module

FBM216 HART Communication Redundant Input Interface Module

More Foxboro Products

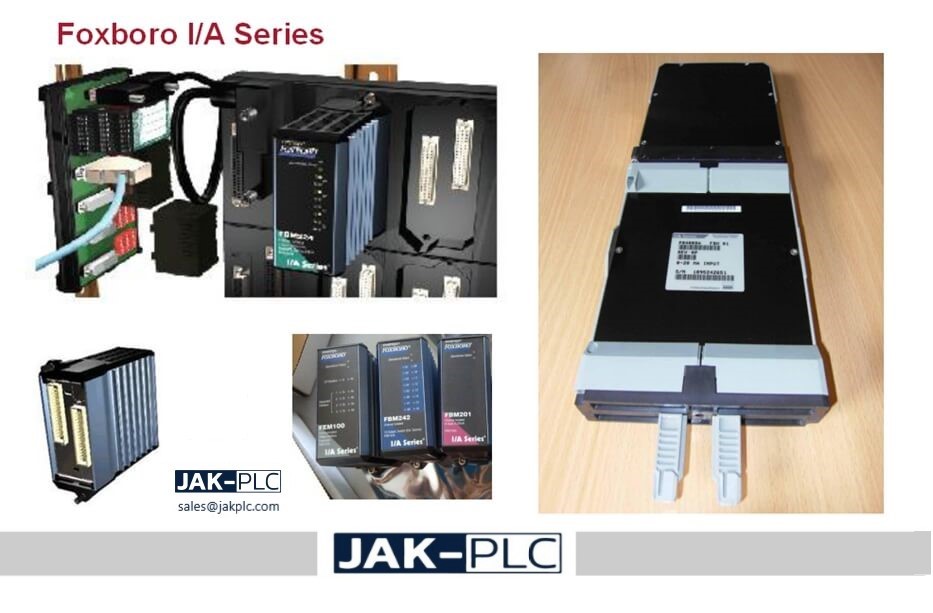

Foxboro I/A Series
