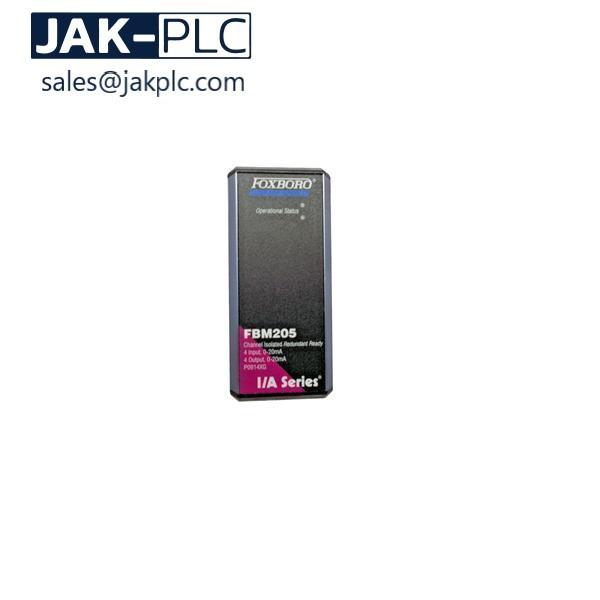

Invensys Foxboro FBM205 P0914XG I/O Interface Module

Invensys Foxboro FBM205 P0914XG Four Redundant 0 to 20 mA DC Analog Output Channels

Introduction

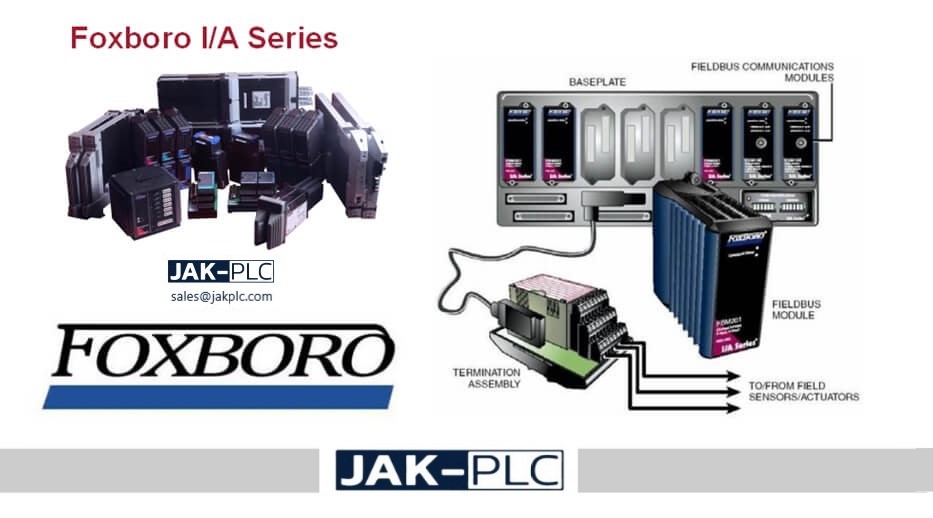

The FBM205, 0 to 20 mA I/O Interface (Redundant)contains four redundant 0 to 20 mA dc analog inputchannels and four redundant 0 to 20 mA dc analogoutput channels. The inputs/outputs are galvanicallyisolated from other channels and ground.A redundant pair of the modules combine to provideredundancy at the Fieldbus Module (FBM) level, withfield I/O wired to one common termination assembly(see Figure 1). Each module independently attemptsto hold the output(s) at its specified output value(s),and each independently reports its observed value ofthe inputs.

Key features of the FBM205 P0914XG

1. Four redundant 20 mA dc analog input channels

2. Four redundant 20 mA dc analog outputchannels

3. Each input and output channel is galvanicallyisolated

4. Compact, rugged design suitable for enclosure inClass G3 (harsh) environments

5. Execution of an analog input application programthat provides conversion time and configurableoptions for Rate of Change Limits

6. Configurable options in the modules for outputsecurity include Fail-Safe Action

7. High accuracy achieved by sigma-delta dataconversions for each channel

8. Termination Assemblies (TAs) for locally orremotely connecting field wiring to the FBM205

9. Redundant loop power on FBM poweredtransmitters

10. 3-tier termination assembly for per channelinternally and/or externally loop-poweredtransmitters.
