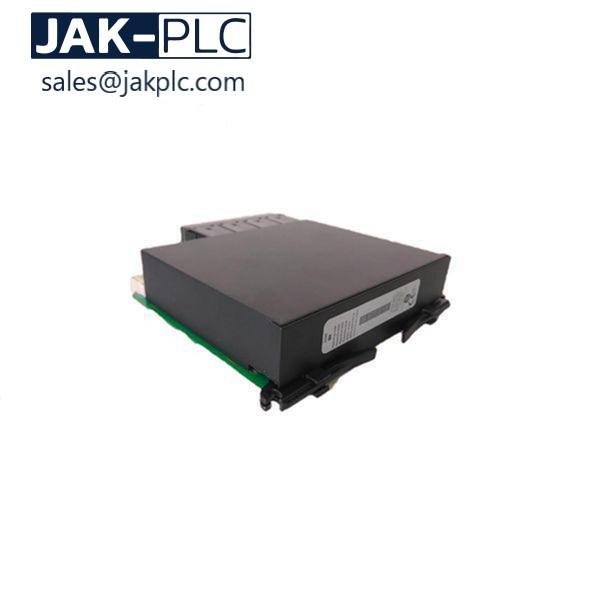

GE Fanuc IC200ALG322D Module

New Original PLC Module FANUC IC200ALG322D In Stock

Description

The IC200ALG322 is a GE Fanuc Versamax Series analog output module designed with four analog voltage outputs with an output range of -10 to + 10VDC. The outputs require an external power supply. The IC200ALG322 module’s backplane consumes 5V output: 50mA maximum, and there is no thermal derating for this module.

Resolution for the IC200ALG322 module is mV equivalent to 16 counts. The recommended range of external supply is+18 to +30VDC (including ripple) with a current consumption of 160mA max with load current calculated. The outputs of the IC200ALG322 module with a jumper with no effort retain their last states or default if backplane power or communications are interrupted or the PLC is not operating. The outputs continue in their default or previous state until changed output data from the backplane is established by the module or until field power is detached. The CPU or Network Interface Unit performs intelligent processing functions for the IC200ALG322 module. The IC200ALG322 module will receive four words of analog output data.

The IC200ALG322 module is equipped with LED indicators. When user-side power for the analog field-side circuits is presented, indication is identified by the green FLD PWR LED. Once the IC200ALG322 module is presented with power from the backplane, the green OK LED will illuminate.
