HIMA F6705 MODULE

HIMA F6705 MODULE Brand New And Original

brand:
HIMA DCS
item no:
F6705
payment:
T/T, Western Union, Credit Card
product origin:
Germany
good stock:
5.0
shipping port:
Saudi Arabia
lead time:
1-3 Working Days
condition:
Brand New And Original
warranty:
12 Months
certificate:
COO
description:
2-Fold Converter Digital/Analog Safety Related

Product Details
FAQs

HIMA F6705 Analog Output Module

Redundant current connection

With redundant current connection, the following must be considered:– The total current IG1 resp. IG2 to the burden RB is the addition of theindividual currents I11 and I21 resp. I12 and I22– The admissible burden resistance is the half– The paralleled channels have to be used in the same mode (source orsink mode)– Because of the temperature error and of the wanted well-balancedload of the modules each output channel should generate the half ofthe current IG to the burden.

Bipolar current connection

The bipolar current connection serves the output of currents with sign between -20 mA to +20 mA. The following must be considered:– The total current is the addition of the individual currents:IG1 = I11 - I21 or IG2 = I12 - I22 resp.– The admissible burden resistance remains the same– Module 1 generates the positive part and module 2 the negative partof the total current– In reasons of accuracy only one module may generate or consumecurrent. This must be programmed in the user's program.

Hima Main Serise:

1. CPU: F8650X, F8650E, F8641
2. Power Distribution Module: F7130A, F7130, F7131, F7133
3. Communication MODULE Coprocessor MODULE； F8621A, F8627X, F8628, F8628X

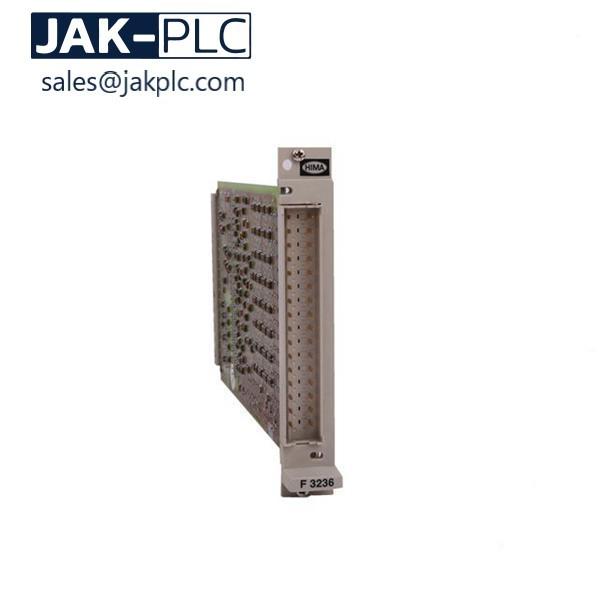

4. Input Module: F3221, F3222, F3223, F3224, F3236, F3237, F6208, F6214, F6215, F6216, F6216A, F6217, F6220, F6221
5. OUTPUT MODULE: F3330, F3331, F3332, F3333, F3334, F3322, F7126, F6705, F1DI1601, F3DIO8/801, F2DO1602, F3DIO20/802, F3AIO8/401, F60GEH01, F60PS01, F60DIO24/1601, F60DI3201, Z7116, Z7126, Z7127, Z7138, Z7128
6. I/O bus link module block: F7553
