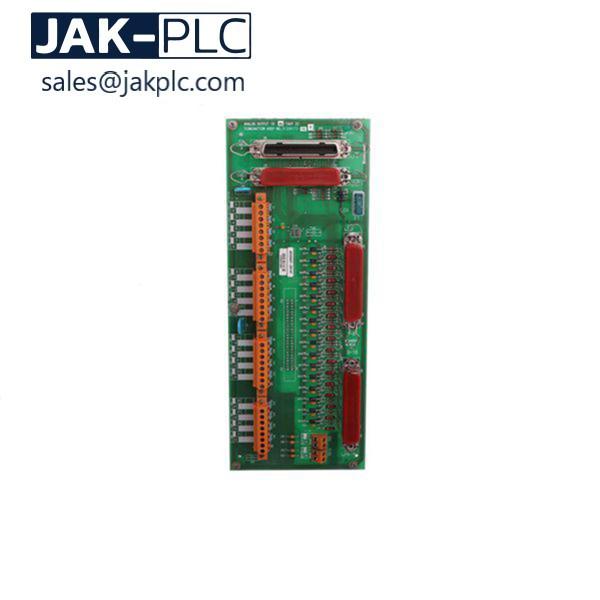

Honeywell MC-TAOY22 51204172-175 Analog Output 16 FTA

Honeywell MC-TAOY22 Analog Output 16 FTA Board 80366177-175, 80366177-150, 51204172-175

brand:
Honeywell
item no:
Honeywell MC-TAOY22 51204172-175
payment:
TT Or Western Union
product origin:
USA
good stock:
20.0
shipping port:
Dammam
lead time:
1-3 Days
condition:
Original New And In Stock
warranty:
1 Year
certificate:
Co,Coo
product type:
Honeywell MC-TAOY22 FTA Module
system:
Honeywell TPS Process Manager I/O

Product Details
FAQs

Original New Honeywell MC-TAOY22 51204172-175 Analog Output 16 FTA

Description

All connections to and from the process are made to Field Termination Assemblies (FTAs). Compression-type termination blocks (that can accept wire sizes as large as 14 AWG or ~1.6 mm) are available for all FTAs. Screw-type termination's can also be provided for most FTAs as shown in Table 1 in the “Specifications” section. The FTAs are connected to the I/O processors by cables that can be up to 50 meters in length. Three sizes of FTAs are used as shown in this table. Twenty-four Vdc transmitter and digital inputs sense power connections are provided through the standard FTA cable

Honeywell Field Termination Assemblies FTA Modules

FTA Model Number	CE Compliant Part Number	Non CE Compliant Part Number	Description
MC-TAOY22	80366177-175	80366177-150	Analog Output with compression terminals
MC-TAIH53	51309138-275	N/A	High Level Analog Input with screw terminals
MC-TAIH62	N/A	80366192-150	High Level Analog Input/STI with screw terminals
MC-TSTX03	51309140-175	N/A	Smart Transmitter Interface with Compression Term
MC-TSTX13	51309142-175	N/A	Smart Transmitter Interface with Compression Term
MC-TSTX53	51309142-275	N/A	Smart Transmitter Interface with Screw Terminals
MC-TAIL02	N/A	51304437-150	Low Level Analog Input with compression terminals
MC-TAIL03	51309202-175	N/A	Low Level Analog Input with compression terminals
MC-TAMR02	N/A	51304477-150	LLMux Analog Input RTD with compression terminals
MC-TAMR03	51309218-175	N/A	LLMux Analog Input RTD with compression terminals
MC-TAMT02	N/A	51401491-150	LLMux Analog Input TC with compression terminals
MC-TAMT03	51301491-175	N/A	LLMux Analog Input TC with compression terminals
MC-TAMT12	N/A	51401573-150	LLMux Analog Input TC with remote CJR, comp term
MC-TAMT13	51301573-175	N/A	LLMux Analog Input TC with remote CJR, comp term
MC-TAOX02	51304476-175	51304476-150	Analog Output with compression terminals
MC-TAOX12	51304335-175	51304335-150	Analog Output with compression terminals
MC-TAOX52	51304335-275	51304335-250	Analog Output with screw terminals
MC-TAOY23	80366177-275	80366177-250	Analog Output with compression terminals
MC-TAOY52	80364007-175	80364007-150	Analog Output with screw terminals
MC-TAOY53	80364007-275	80364007-250	Analog Output with screw terminals
MC-TDIA12	51304439-175	51304439-150	120 Vac Digital Input with compression terminals
MC-TDIA52	51304439-275	51304439-250	120 Vac Digital Input with fixed-screw terminals
MC-TDIA72	N/A	51303930-150	120 Vac Digital Input with removable-screw terminals
MC-TDIA22	51304431-175	51304431-150	240 Vac Digital Input with compression terminals
