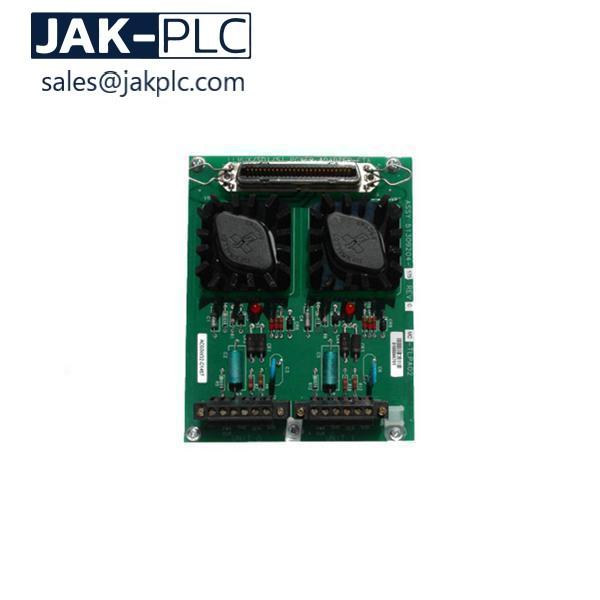

Honeywell MC-TDOD13 51304650-150 Digital Output FTA Module

Honeywell MC-TDOD13 51304650-150 Digital Output 3-30 Vdc Solid-State FTA (16 Outputs)

brand:
Honeywell
item no:
Honeywell MC-TDOD13 51304650-150
payment:
TT Or Western Union
product origin:
USA
good stock:
20.0
shipping port:
Dammam
lead time:
1-3 Days
condition:
Original New And In Stock
warranty:
1 Year
certificate:
Co,Coo
product type:
Honeywell MC-TDOD13 51304650-150 FTA Board
system:
Honeywell TPS Process Manager I/O

Product Details
FAQs

Original New MC-TDOD13 51304650-150 Digital Output FTA Module In Stock

Description

All connections to and from the process are made to Field Termination Assemblies (FTAs). Compression-type termination blocks (that can accept wire sizes as large as 14 AWG or ~1.6 mm) are available for all FTAs. Screw-type termination's can also be provided for most FTAs as shown in Table 1 in the “Specifications” section. The FTAs are connected to the I/O processors by cables that can be up to 50 meters in length. Three sizes of FTAs are used as shown in this table. Twenty-four Vdc transmitter and digital inputs sense power connections are provided through the standard FTA cable

Honeywell Field Termination Assemblies FTA Modules

FTA Model Number	Description	Non-CE Compliant Part Number	CE Compliant Part Number
MC-TDOD13	3-30 Vdc Digital Output with compression terminals	51304650-150	N/A
MC-TDOY22	24 Vdc Isolated Digital Output with compression term	80366183-150	80366183-175
MC-TDIY22	24 Vdc Digital Input with compression terminals	80366180-150	80366180-175
MC-TDIA62	240 Vac Digital Input with fixed-screw terminals	51304431-250	51304431-275
MC-TDID12	24 Vdc Digital Input with compression terminals	51304441-150	51304441-175
MC-TDID52	24 Vdc Digital Input with fixed-screw terminals	51304441-250	51304441-275
MC-TDID72	24 Vdc Digital Input with removable-screw terminals	51303928-150	N/A
MC-TDIY62	24 Vdc Digital Input with fixed-screw terminals	80366180-250	80366180-275
MC-TDOA13	120/240 Vac Solid-State Digital Output w/comp term	51304648-150	51304648-175
MC-TDOA53	120/240 Vac Solid-State Digital Output w/screw term	51304648-250	51304648-275
MC-TDOD14	3-30 Vdc Digital Output with compression terminals	N/A	51309153-175
MC-TDOD22	31-200 Vdc Digital Output with compression terminals	51304428-150	N/A
MC-TDOD23	31-200 Vdc Digital Output with compression terminals	N/A	51309154-175
MC-TDOD53	3-30 Vdc Digital Output with screw terminals	51304650-250	N/A
MC-TDOD54	3-30 Vdc Digital Output with screw terminals	N/A	51309153-275
MC-TDOD62	31-200 Vdc Digital Output with screw terminals	51304428-250	N/A
MC-TDOD63	31-200 Vdc Digital Output with screw terminals	N/A	51309154-275
MC-TDON12	24 Vdc Nonisolated Digital Output with comp term	51304446-150	N/A
MC-TDON52	24 Vdc Nonisolated Digital Output with screw term	51304446-250	N/A
MC-TDOY62	24 Vdc Isolated Digital Output with screw terminals	80364013-150	80364013-175
MC-TDOR12	120 Vac/125 Vdc Relay Digital Output with comp term	51304443-150	51309148-175
MC-TDOR52	120 Vac/125 Vdc Relay Digital Output with screw term	51304443-250	51309148-275
MC-TDOR22	240 Vac/125 Vdc Relay Digital Output with comp term	51304427-150	51309150-175
MC-TDOR62	240 Vac/125 Vdc Relay Digital Output with screw term	51304427-250	51309150-275
