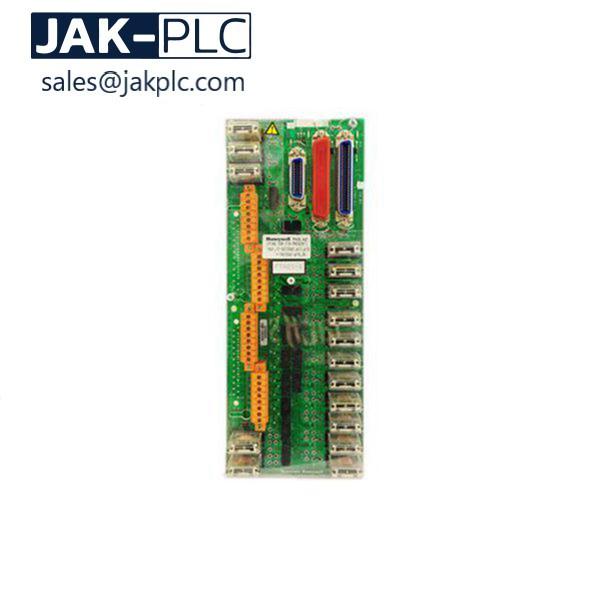

Honeywell MC-TDOY23 51204166-175 Digital Output Relay FTA

Honeywell MC-TDOY23 51204166-175 240 Vac/125 Vdc Relay Digital Output

brand:
Honeywell
item no:
Honeywell MC-TDOY23 51204166-175
payment:
TT Or Western Union
product origin:
USA
good stock:
20.0
shipping port:
Dammam
lead time:
1-3 Days
condition:
Original New And In Stock
warranty:
1 Year
certificate:
Co,Coo
product type:
Honeywell MC-TDOY23 51204166-175 FTA Board
system:
Honeywell TPS Process Manager I/O

Product Details
FAQs

Original New Honeywell MC-TDOY23 51204166-175 Relay Digital Output Module

Description

All connections to and from the process are made to Field Termination Assemblies (FTA). Compression-type termination blocks (that can accept wire sizes as large as 14 AWG or ~1.6 mm) are available for all FTAs. Screw-type termination's can also be provided for most FTAs as shown in Table 1 in the “Specifications” section. The FTAs are connected to the I/O processors by cables that can be up to 50 meters in length. Three sizes of FTAs are used as shown in this table. Twenty-four Vdc transmitter and digital inputs sense power connections are provided through the standard FTA cable

Honeywell Field Termination Assemblies FTA Modules

FTA Model Number	CE Compliant Part Number	Non CE Compliant Part Number	Description
MC-TDOY23	80366189-175	80366189-150	240 Vac/125 Vdc Relay Digital Output with comp term
MC-TPIX12	51304084-175	51304084-150	Pulse Input with compression terminals
MC-TDOY63	80366185-175	80366185-150	240 Vac/125 Vdc Relay Digital Output with screw term
MC-TDPR02	51304425-175	51304425-150	Digital Input Power Distribution Assembly
MC-TLPA02	51309204-175	51304467-150	Power Adapter
MC-TPIX52	51304084-275	51304084-250	Pulse Input with screw terminals
MC-TSDM02	N/A	51303932-252	Serial Device Interface—Manual/Auto Station
MC-TSDT02	N/A	51303932-251	Serial Device Interface—Toledo Weigh Cell
MC-TSDU02	N/A	51303932-253	Serial Device Interface—UDC 6000 Modbus
MC-TSIA12	51303932-478	51303932-453	Serial Interface—Allen-Bradley
MC-TSIM12	51303932-476	51303932-451	Serial Interface—Modbus EIA-232

honeywell MC
