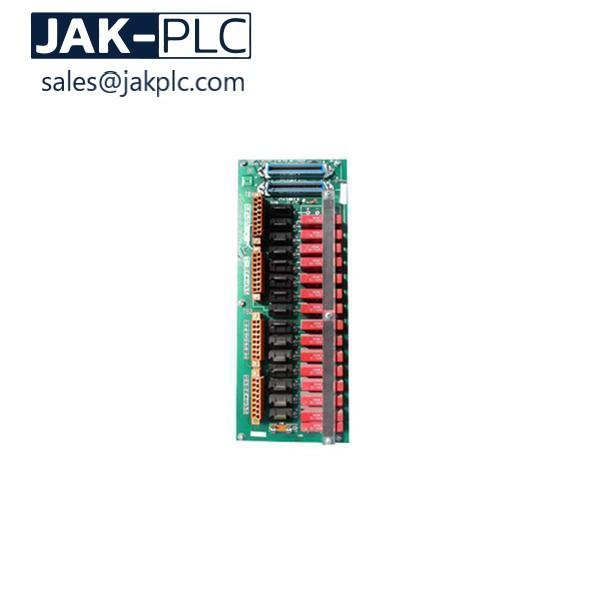

Honeywell MU-TDOD12 51304423-100 Digital Output PLC Module

Honeywell MU-TDOD12 51304423-100 3-30 Vdc Digital Output with compression terminals

brand:
Honeywell
item no:
Honeywell MU-TDOD12 51304423-100
payment:
TT Or Western Union
product origin:
USA
good stock:
30.0
shipping port:
Dammam
lead time:
1-3 Days
condition:
Original New And In Stock
warranty:
1 Year
certificate:
Co,Coo
product type:
Honeywell FTA Card MU-TDOD12 51304423-100
system:
Honeywell TPS Process Manager I/O

Product Details
FAQs

Honeywell MU-TDOD12 51304423-100 Digital Output PLC Module In Stock

Description

All connections to and from the process are made to Field Termination Assemblies (FTA). Compression-type termination blocks (that can accept wire sizes as large as 14 AWG or ~1.6 mm) are available for all FTAs. Screw-type termination's can also be provided for most FTAs as shown in Table 1 in the “Specifications” section. The FTAs are connected to the I/O processors by cables that can be up to 50 meters in length. Three sizes of FTAs are used as shown in this table. Twenty-four Vdc transmitter and digital inputs sense power connections are provided through the standard FTA cable

Honeywell Field Termination Assemblies FTA Modules

Model Number	Non-CE Compliant Part Number	CE Compliant Part Number	FTA Type
MU-TDOD12	51304423-100	N/A	3-30 Vdc SS DO
MU-TDOD13	51304650-100	N/A	3-30 Vdc SS DO
MU-TDOY62	80364013-100	80364013-125	24 Vdc Isolated DO
MU-TDOD14	N/A	51309153-125	3-30 Vdc SS DO
MU-TDOD52	51304423-200	N/A	3-30 Vdc SS DO
MU-TDOD53	51304650-200	N/A	3-30 Vdc SS DO
MU-TDOD54	N/A	51309153-225	3-30 Vdc SS DO
MU-TDOD22	51304428-100	N/A	31-200 Vac SS DO
MU-TDOD23	N/A	51309154-125	31-200 Vac SS DO
MU-TDOD62	51304428-200	N/A	31-200 Vac SS DO
MU-TDOD63	N/A	51309154-225	31-200 Vac SS DO
MU-TDOA12	51304408-100	N/A	120/240 Vac SS DO
MU-TDOA13	51304648-100	51304648-125	120/240 Vac SS DO
MU-TDOA52	51304408-200	N/A	120/240 Vac SS DO
MU-TDOA53	51304648-200	51304648-225	120/240 Vac SS DO
MU-TDOR12	51304443-100	51309148-125	120 Vac/125 Vdc Relay DO
MU-TDOR52	51304443-200	51309148-225	120 Vac/125 Vdc Relay DO
MU-TDOR22	51304427-100	51309150-125	240 Vac/125 Vdc Relay DO
MU-TDOR62	51304427-200	51309150-225	240 Vac/125 Vdc Relay DO
MU-TDOY23	80366189-100	80366189-125	240 Vac/125 Vdc Relay DO
MU-TDOY63	80366185-100	80366185-125	240 Vac/125 Vdc Relay DO
MU-TPIX12	51304084-100	51304084-125	PI
MU-TPIX52	51304084-200	51304084-225	PI
