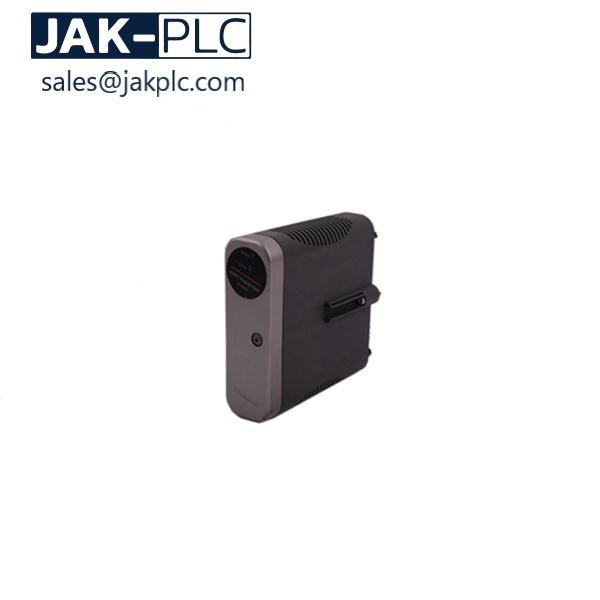

Honeywell TC-IXL061 TDC 3000 Thermocouple Input Module

TC-IXL061 thermocouple Input, 6-Point Module This module has been replaced by TC/TK- IXL062. When replacing anTx-IXL061 with the Tx-IXL062 module, it’s necessary to rewire the terminal block. When the RTP is used, a new pre-wire cable is required.

brand:
Honeywell
item no:
Honeywell TC-IXL061
payment:
TT Or Western Union
product origin:
USA
good stock:
20.0
shipping port:
Dammam
lead time:
1-3 Days
condition:
Original New
warranty:
1 Year
certificate:
Co,Coo
product type:
Honeywell Experion LS I/O Module
system:
Honeywell TDC 3000

Product Details
FAQs

Honeywell TC-IXL061 TDC 3000 Thermocouple Input Controller In Stock

Introduction

Honeywell's newest Universal I/O module, based on Universal Channel Technology, reduces or eliminates marshalling. More importantly, it allows immediate configuration without the need for additional hardware. Click on the Demo tab to view videos describing how this new technology can reduce marshalling and equipment needed.

Specification

Part No.	TC-IXL061
Number of Points	6 channels plus 1 cold junction channel
Nominal Input Voltage Ranges	-12 mV to +78 mV -12 mV to +30 mV (high resolution range)
Supported Thermocouple Types	B, E, J, K, R, S, T, N, C
Resolution	16 bits (1.4 V typical), 0.70 V on high resolution range
Common Mode Rejection	120 dB @ 60 Hz, 100 dB @ 50 Hz
Module Update Rate for All Channels	50 milliseconds
Settling Time to 5% of Full Scale	Less than 80 milliseconds
Open Circuit Detection Open TC Detection Time	Upscale reading 5 seconds typical
Channel Bandwidth	0 to 15 Hz (-3 db)
Normal Mode Noise Rejection	60 dB @ 60 Hz
Spare CJR Thermistor Model Number	TC-CJRT01 (part no. 51109433-100)
Isolation Voltage Channel to channel User to system	100% tested at 2546 VDC for 1s 100% tested at 2546 VDC for 1s
Connection Terminal Blocks	TC-TBNH, 20-position terminal block
