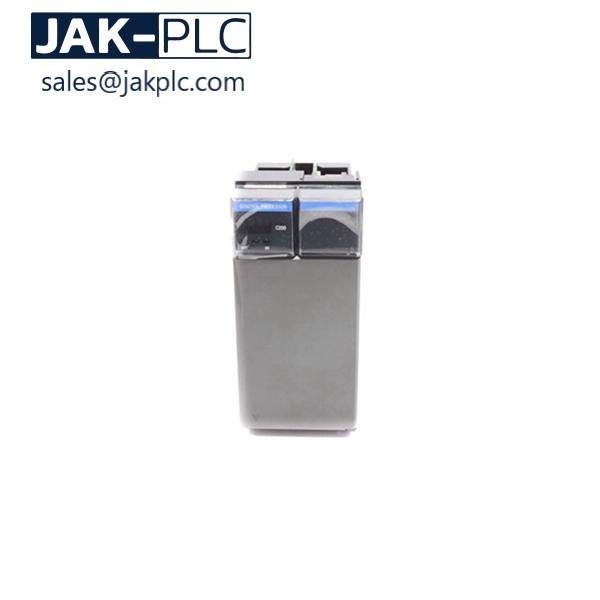

Honeywell TK-IAH161 Experion I/O Analog Input Module

High Level Analog, 16-Input, Voltage and Current (10 V & 4-20 mA) Module Honeywell TK-IAH161

brand:
Honeywell
item no:
Honeywell TK-IAH161
payment:
TT Or Western Union
product origin:
USA
good stock:
20.0
shipping port:
Dammam
lead time:
1-3 Days
condition:
Original New
warranty:
1 Year
certificate:
Co,Coo
product type:
TK-IAH161 Honeywell Experion LS I/O Module
system:
C200 System

Product Details
FAQs

Original New Honeywell TK-IAH161 Analog 16-Input Module In Stock

Overview

UB indicates the wiring layout (In this case a cable pre-wired for module TK-IAH161 and single ended current
inputs). Different letter designators are used with other IOM’s.TC-IAH161 High Level Analog, 16-Input, Voltage and Current (10 V & 4-20 mA) Module

Specification

Parameter	Specification
Part No.	TK-IAH161
Number of Points	16 channels
Module Publish Rate	250 msec
Open Circuit Detection Typical OC Detection Time	Voltage Even channels - Positive Full scale reading Odd channels – Negative Full scale reading Current – Negative Full scale reading less than 5 seconds
Normal Mode Noise Rejection Common Mode Rejection	Greater than 33 dB @ 50 Hz Greater than 60 dB @ 60 Hz 100 dB @ 50/60 Hz
Channel Bandwidth	20 Hz(-3dB)
Calibrated Accuracy	Better than 0.05% of range (Voltage) Better than 0.15% of range including sense resistor (Current)
RFI Immunity	Error of less than 2.0% of range at 10 V/m, 27 to 1000 MHz
Overvoltage Capability	Continuous at room temperature (both) 30 VDC (Voltage) 8 VDC (Current)

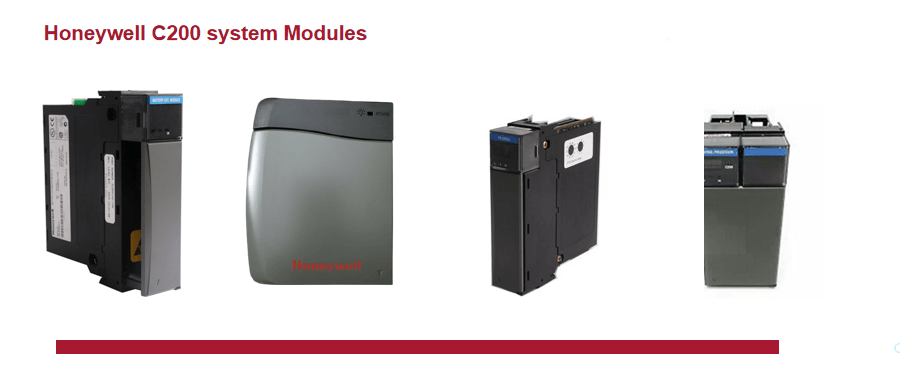

honeywell C200
