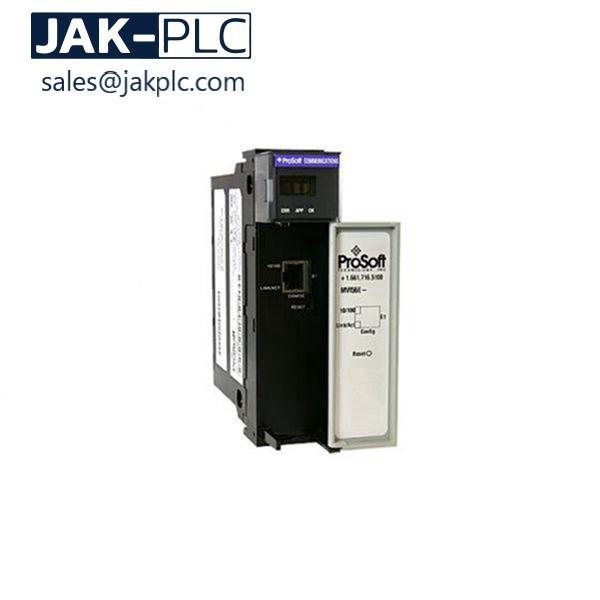

Prosoft MVI56E-MNETC Modbus TCP/IP Enhanced Communication Module

Rockwell Prosoft MVI56E-MNETC Modbus TCP/IP Client Enhanced Communication Module

Overview

When you need Modbus® TCP/IP communications, the Allen Bradley MVI56EMNETC MVI56MNETCXT is the module of choice. The Modbus TCP/IP EnhancedCommunications Module allows Rockwell Automation® ControlLogix®Programmable Automation Controllers (PACs) to interface easily with Modicon®Programmable Automation Controller (PACs), as well as multiple ModbusTCP/IP server-compatible instruments and devices. The multi-client moduleimproves performance when controlling multiple servers on a Modbus TCP/IPnetwork, by supporting up to 30 Clients. It also supports up to 20 serverconnections providing the ability to communicate with other DCS and SCADAsystems. Both client and server functionality can run simultaneously, allowingthe module to operate as a powerful data concentrator.The MVI56E-MNETC and MVI56E-MNETCXT are functionally the same. TheMVI56E-MNETC is designed for standard process applications. The MVI56EMNETCXT is designed for the Logix-XT™ control platform, allowing it to operatein extreme environments. It tolerates higher operating temperatures, and has aconformal coating to protect it from harsh or caustic conditions.MVI56E enhancements include configuration and management through themodule’s Ethernet port, and CIPconnect® technology for bridging thoughControlNet™ and EtherNet/IP™ networks.

General Specifications

Backward compatible with previous MVI56-MNETC versions

 Single-slot 1756 ControlLogix backplane compatible

10/100 Mbps auto crossover detection Ethernet configuration and application port

User-definable module data memory mapping of up to 10,000 16-bit registers

CIPconnect-enabled network configuration and diagnostics monitoring usingControlLogix 1756-ENxT and 1756-CNB modules

ProSoft Configuration Builder (PCB) software supported, a Windows-basedgraphical user interface providing simple product and network configuration

Sample ladder logic and Add-On Instructions (AOI) are used for data transferbetween module and processor

4-character, alpha-numeric, scrolling LED display of status and diagnostics data inplain English – no cryptic error or alarm codes to decipher

ProSoft Discovery Service (PDS) software used to locate the module on thenetwork and assign temporary IP address

Personality Module - a non-volatile industrial-grade Compact Flash (CF) card usedto store network and module configuration for easy disaster recovery, allowingquick in-the-field product replacement by transferring the CF card
