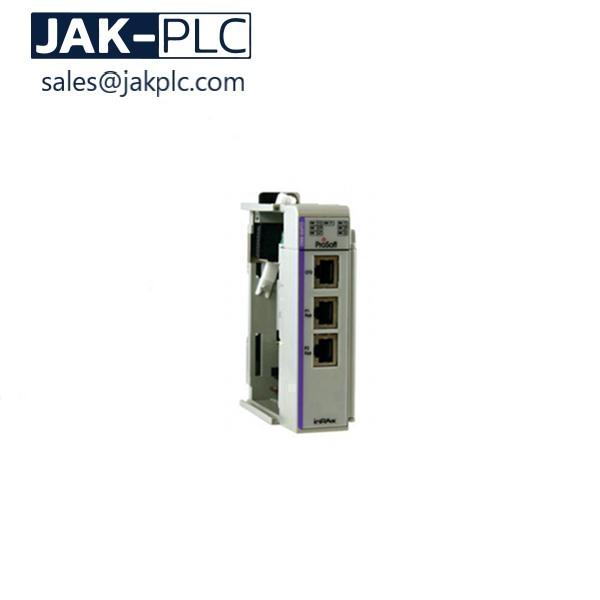

Prosoft MVI69L-MBS Modbus Serial Lite Communication Module

Rockwell Prosoft MVI69L-MBS Modbus Serial Lite Communication Module for CompactLogix

brand:
Allen Bradley
item no:
Prosoft MVI69L-MBS
payment:
TT Or Western Union
product origin:
USA
shipping port:
Dammam
lead time:
1-3 Working Days
condition:
Original New
warranty:
12 Months
description:
Allen Bradley Prosoft MVI69L-MBS Modbus Serial Lite Communication Module
product type:
Communication Module
system:
CompactLogix

Product Details
FAQs

Rockwell Automation Prosoft MVI69L-MBS Modbus Serial Lite Communication Module

Introduction

The MVI69L-MBS, Modbus Serial module for the CompactLogix™series of controllers is designed for smaller applications wherecommunication between a few Modbus Serial devices is required.This module has an Add-on Profile and an Add-on Instruction toreduce commissioning time. The MVI69L-MBS has a single serialport and can support either Master or Slave connectivity to interfacewith a variety of devices using the Modbus Protocol.

Features

Supports CompactLogix processors with 1769 I/O bus capability version 16 and greater (MicroLogix 1500 not supported)

Add-on Instruction creates UDTs, providing logical definitions for I/O, status, and control data

Add-on Profile support, improving integration in the CompactLogix System

Diagnostic data available in processor controller tags, enabling decisions to be made based upon node health

Module configuration backed up in CompactLogix project (ACD file)

Module acts as a co-processor reducing impact to PLC scan time

Supports up to 240 words of I/O data

Application port can be configured as either a Modbus Master or Modbus Slave

Supports up to 30 Modbus Commands as a Modbus Master

Supports Enron and Daniel style Floating point data implementations

Most suitable for OEM and Machine Builder applications

General Specifications

Product ID	MVI69L-MBS
Configuration	ProSoft Configuration Builder
I/O Size	240/240 - 16 bit integers
Communication parameters	Baud Rate: 110 to 115K baud, Stop Bits: 1 or 2, Data Size: 7 or 8 bits Parity: None, Even, Odd, RTS Timing delays: 0 to 65535 milliseconds
Modbus Modes	RTU mode (binary) with CRC-16, ASCII mode with LRC error checking
Floating Point Data	Floating point data movement supported, including configurable support for Enron, Daniel®, and other implementations
Hardware Dimensions	Standard 1769 Single-slot module
Shipped with Unit	1 - RJ45 to DB-9M cables for application port, 1 - DB-9F breakout boards
